-86°C Biosafe Eco
Various of high efficiency cooling systems to meet different requirements of users. Cutting age inverter technology (BioSafe-IC) and dual compressor cooling technology (BioSafe-DUAL) are adopted on ANTECH ULT freezers, providing lowest energy consumption & highest level protection.

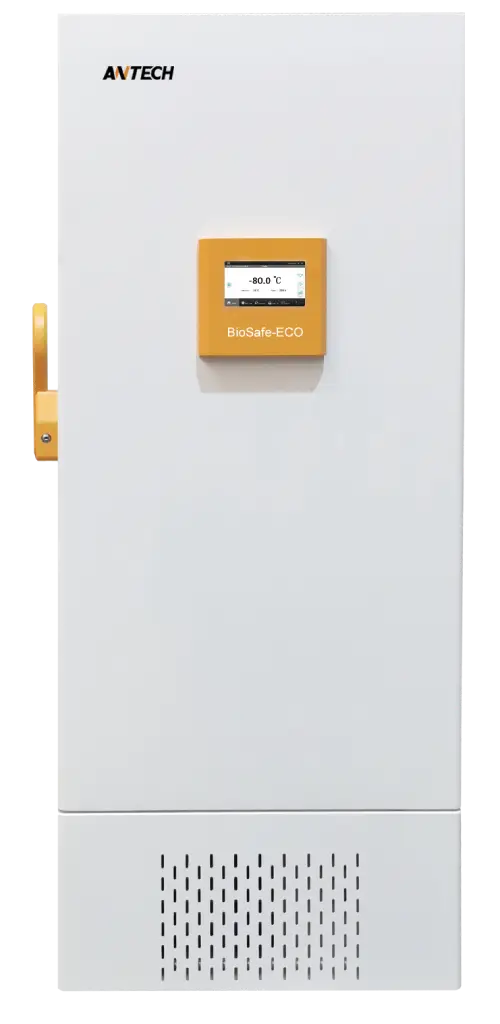

MDF-86U340T
Main specifications:
- Type: Upright
- Cooling technology: Cascade cooling
- Temperature setting range (°C): -40 to -86
- Climate type: N
- Capacity (L): 338
- 2" box storage Qty (Pcs): 192
- Net weight (KGs): 296
- Intermal W×D×H (mm): 488×607×1140
- Extermal W×D×H (mm): 854×1072×1907
- Cooling type: Direct
- Defrost Manual: Manual
- Refrigerant: Hydrocarbon gas
- Number of compressor: 2
Control & display system
- Controller: TC-310
- Cooling type: Direct
- Display: 7" LCD touch screen
- Temperature display accuracy: 0.1
- Password protection: Yes
- Temperature graph: Yes
Power:
- Power supply (V/Hz):
220/50 220/60
120/60 - Rated power (W): 620

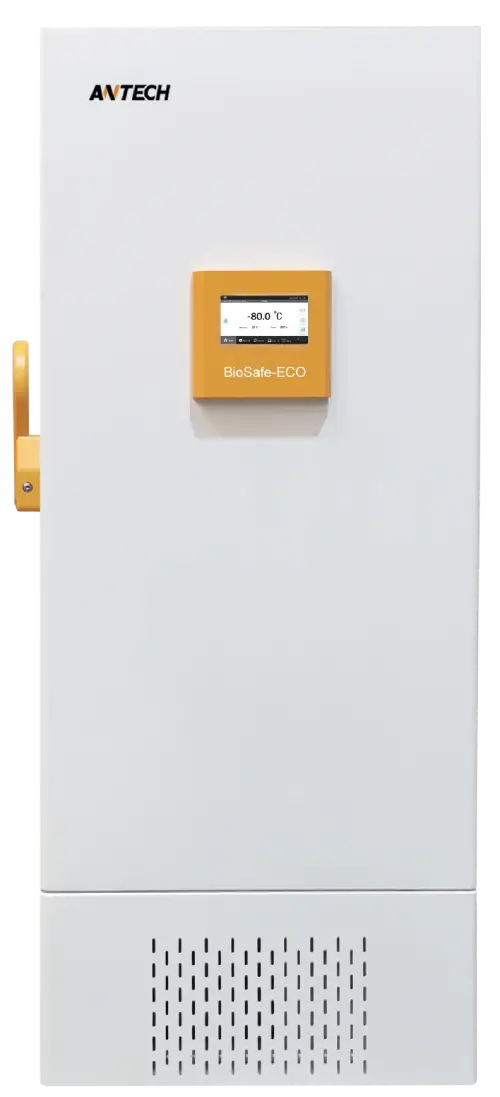

MDF-86U588T
Main specifications:
- Type: Upright
- Cooling technology: Cascade cooling
- Temperature setting range (°C): -40 to -86
- Climate type: N
- Capacity (L): 588
- 2" box storage Qty (Pcs): 400
- Net weight (KGs): 335
- Intermal W×D×H (mm): 606×738×1310
- Extermal W×D×H (mm): 891×1155×1994.5
- Cooling type: Direct
- Defrost Manual: Manual
- Refrigerant: Hydrocarbon gas
- Number of compressor: 2
Control & display system
- Controller: TC-310
- Cooling type: Direct
- Display: 7" LCD touch screen
- Temperature display accuracy: 0.1
- Password protection: Yes
- Temperature graph: Yes
Power:
- Power supply (V/Hz):
220/50 220/60
120/60 - Rated power (W): 690

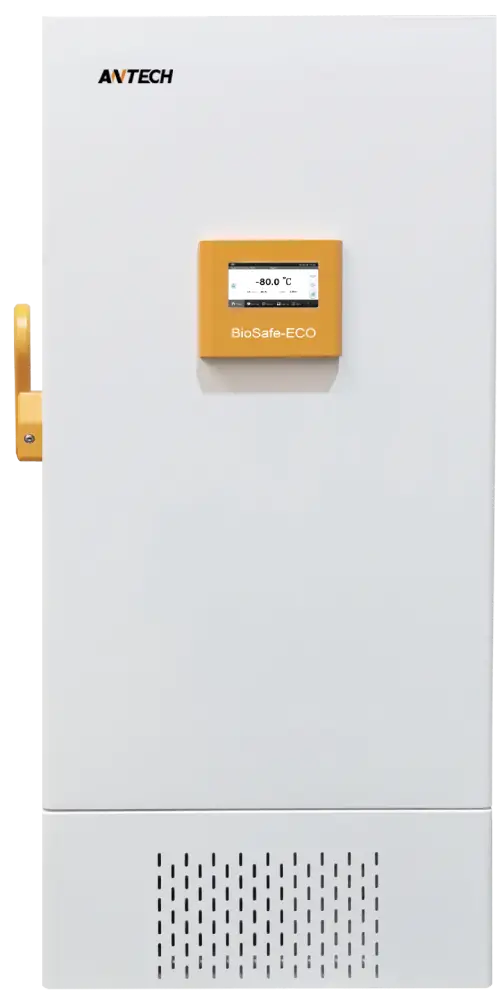

MDF-86U728T
Main specifications:
- Type: Upright
- Cooling technology: Cascade cooling
- Temperature setting range (°C): -40 to -86
- Climate type: N
- Capacity (L): 728
- 2" box storage Qty (Pcs): 504
- Net weight (KGs): 380
- Intermal W×D×H (mm): 963×571×1350
- Extermal W×D×H (mm): 1248×975×1994.5
- Cooling type: Direct
- Defrost Manual: Manual
- Refrigerant: Hydrocarbon gas
- Number of compressor: 2
Control & display system
- Controller: TC-310
- Cooling type: Direct
- Display: 7" LCD touch screen
- Temperature display accuracy: 0.1
- Password protection: Yes
- Temperature graph: Yes
Power:
- Power supply (V/Hz):
220/50 220/60
120/60 - Rated power (W): 710

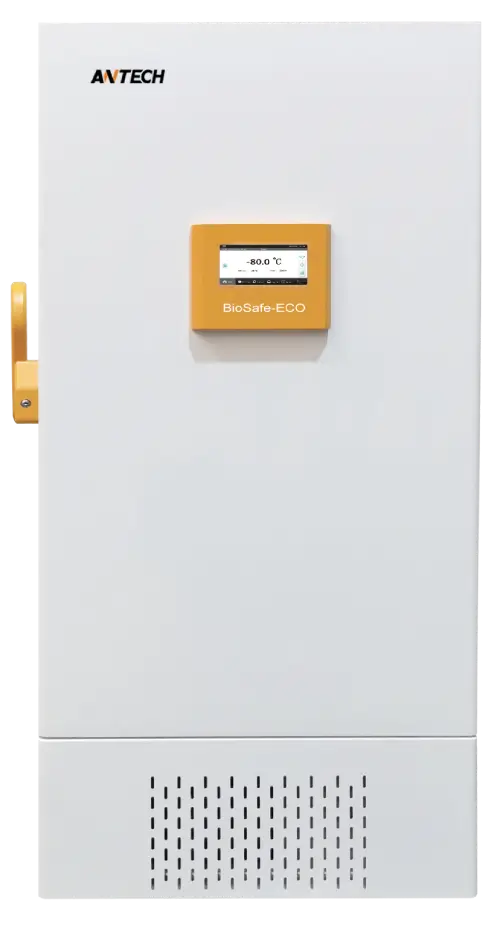

MDF-86U838T
Main specifications:
- Type: Upright
- Cooling technology: Cascade cooling
- Temperature setting range (°C): -40 to -86
- Climate type: N
- Capacity (L): 838
- 2" box storage Qty (Pcs): 600
- Net weight (KGs): 397
- Intermal W×D×H (mm): 894×718×1310
- Extermal W×D×H (mm): 1179×1135×1994.5
- Cooling type: Direct
- Defrost Manual: Manual
- Refrigerant: Hydrocarbon gas
- Number of compressor: 2
Control & display system
- Controller: TC-310
- Cooling type: Direct
- Display: 7" LCD touch screen
- Temperature display accuracy: 0.1
- Password protection: Yes
- Temperature graph: Yes
Power:
- Power supply (V/Hz): 220V/50Hz
- Rated power (W): 720
