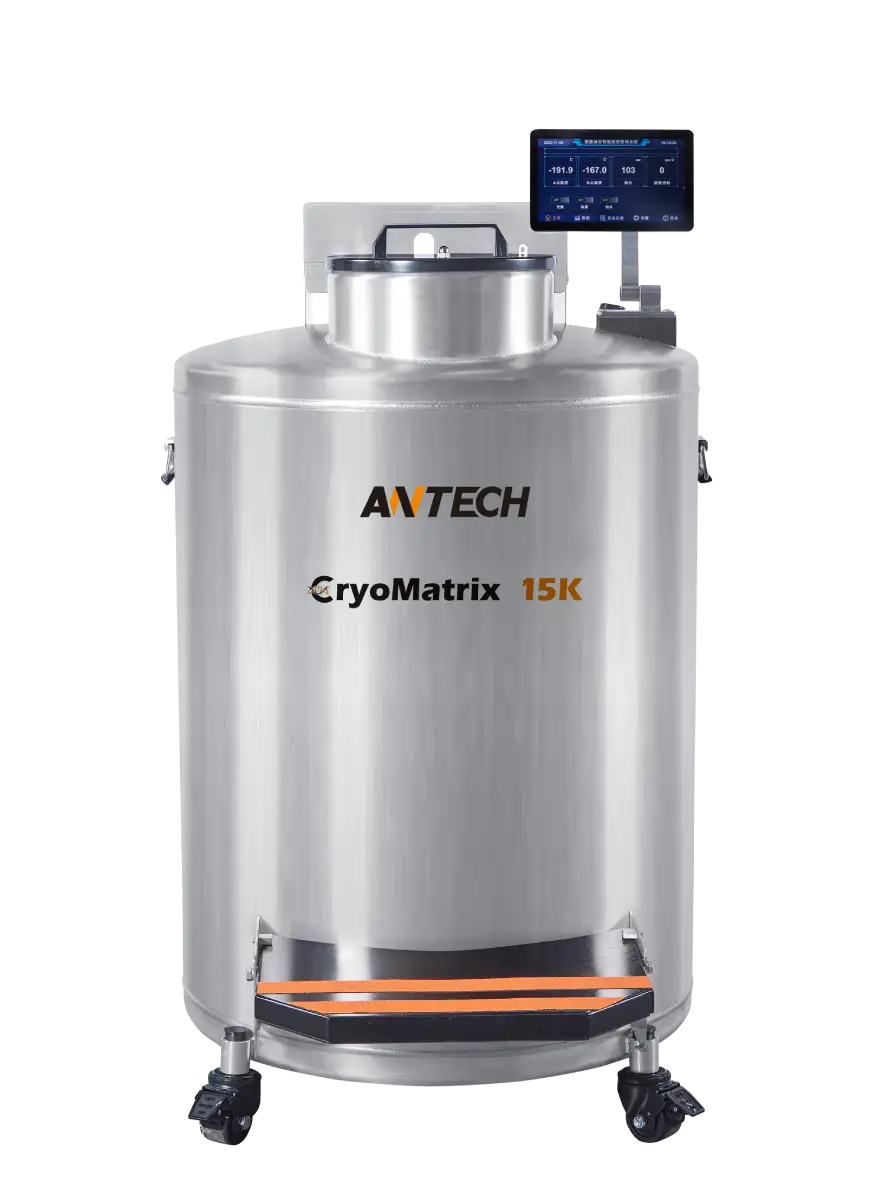

LN2 Cryogenic

Maximum storage capacity

1.2 & 2ml vial

• 1.2 &2ml vial: 16800
• Number of large rack (81/100-place box): 12
• Number of small rack (25-place box): 8
• 2" Boxes per rack: 12

5ml vial

• 5ml vial (81-place): 5832
• Number of racks: 12
• 3.75" Boxes per rack: 6

Functions

• Controller: Touch screen
• Full auto fill: Standard
• Data storage / USB port: Standard
• Defog: Standard
• Foldable step: Standard
• Backup battery: Optional
• Vacuum jacketed hose: Optional

Maximum storage capacity

1.2 & 2ml vial

• 1.2 &2ml vial: 29000
• Number of large rack (81/100-place box): 24
• Number of small rack (25-place box): 20
• 2" Boxes per rack: 10

5ml vial

• 5ml vial (81-place): 9720
• Number of racks: 24
• 3.75" Boxes per rack: 5

Functions

• Controller: Touch screen
• Full auto fill: Standard
• Data storage / USB port: Standard
• Defog: Standard
• Foldable step: Standard
• Backup battery: Optional
• Vacuum jacketed hose: Optional

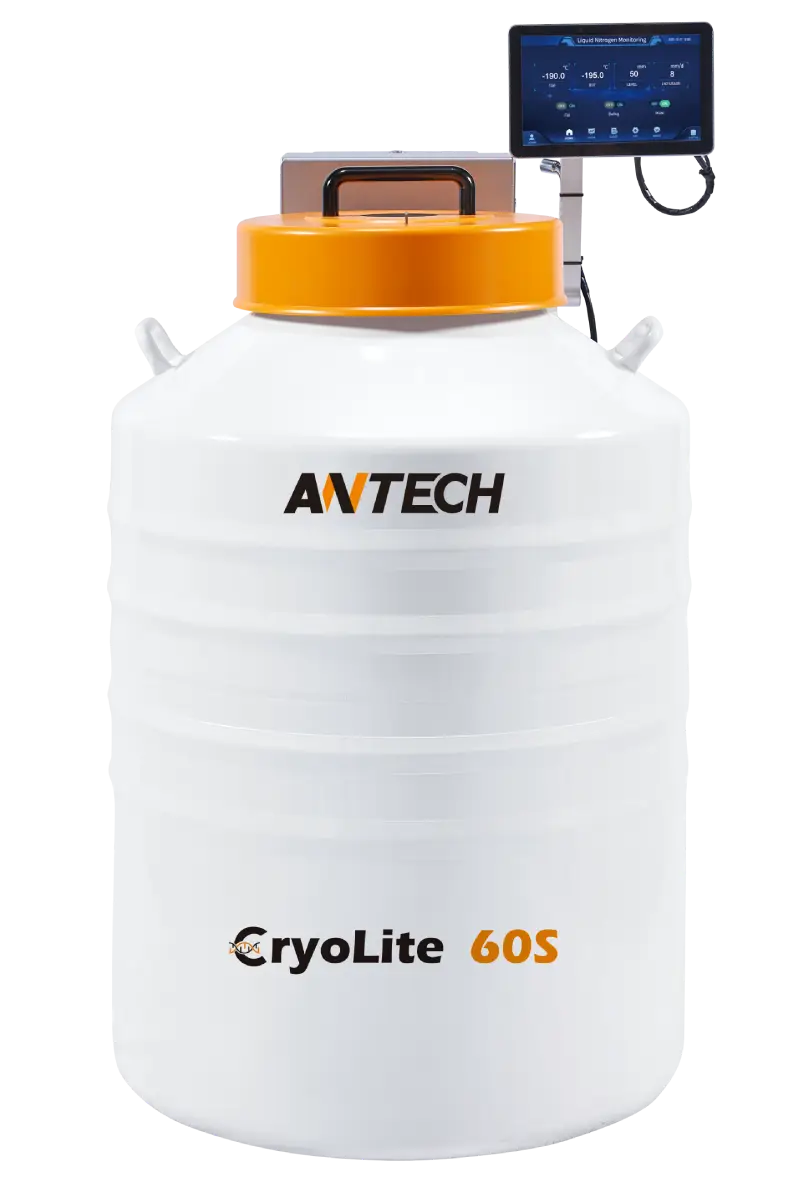

1.2 & 2ml vial
1.2 & 2ml vials

• (25/100-place box): 6000
• Number of racks: 6, standard
• 2" Boxes per rack: 10

5ml vial

• 5ml vials (81-place box): 2430
• Number of racks: 6
• 3.75" Boxes per rack: 5

Monitoring

• Temperature & liquid level display: Yes
• On-site alarm: Sound & light
• Data storage & USB port: Yes
• Remote alarm contact: Yes
• RS485 port: Yes
• Wi-Fi connection & cloud access: Optional
• Power supply: 100~240V, 50/60Hz
• Backup battery: Yes

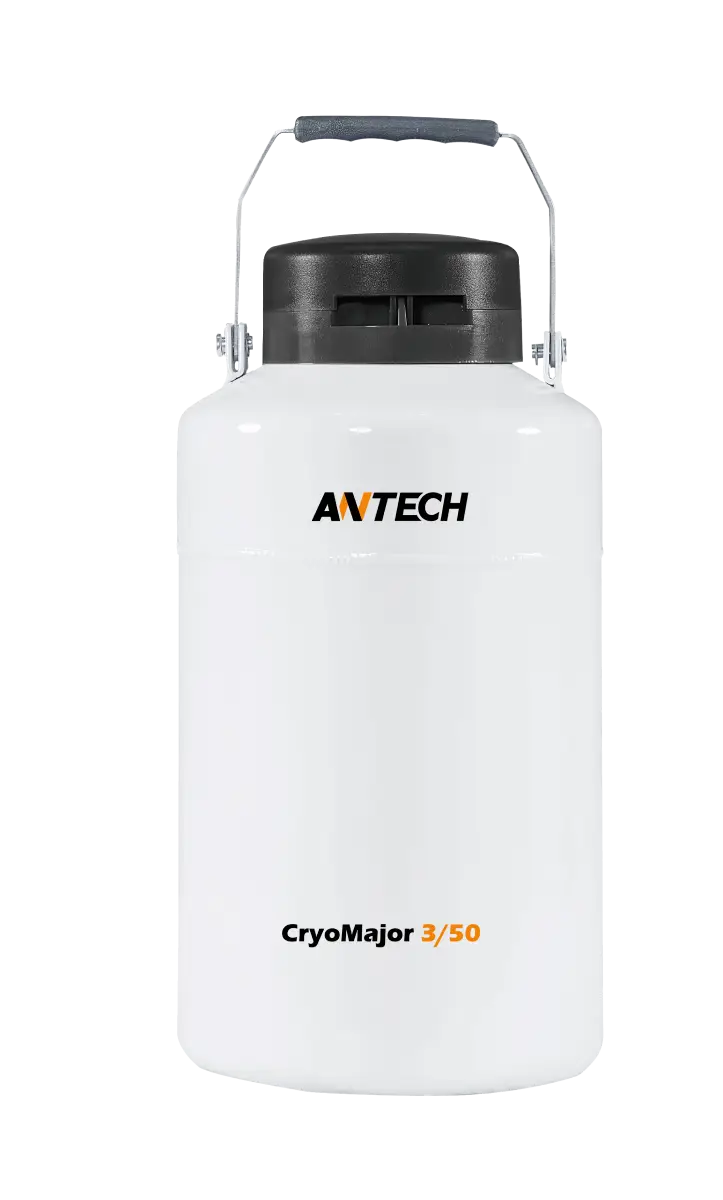

Maximum storage capacity

• Number of canister: 6
• Canister type 1-layer
• Number of straws, 1/2 cc: 792
• Number of straws, 1/4 cc: 1716

Performance

• LN2 capacity (L): 3
• Static evaporation rate (L/day): 0.12
• Static holdover time (day): 26

Dimensions

• Neck opening (mm): 50
• External diameter (mm): 224
• Overal height (mm): 441
• Canisters diameter (mm): 38
• Canister height (mm): 120
• Weight empty (kg): 3.5
  Weight full (kg): 5.9

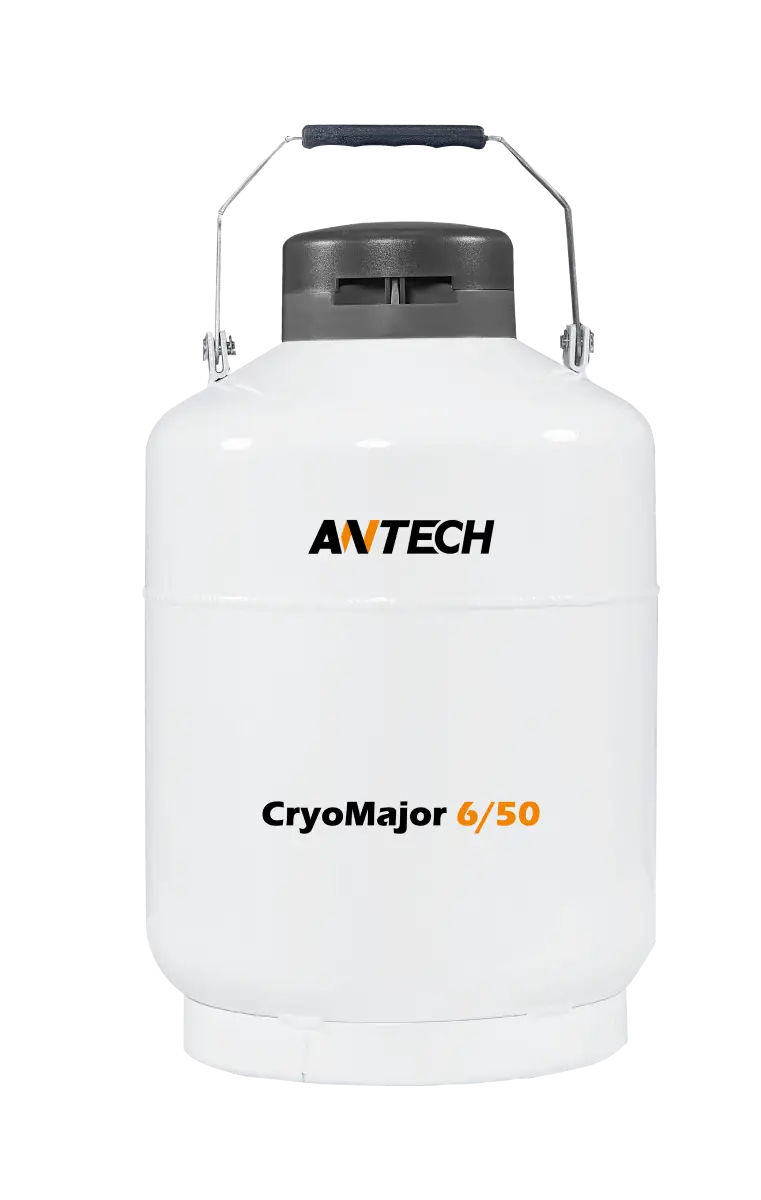

Maximum storage capacity

• Number of canister: 6
• Canister type 1-layer
• Number of straws, 1/2 cc: 792
• Number of straws, 1/4 cc: 1716

Performance

• LN2 capacity (L): 6
• Static evaporation rate (L/day): 0.12
• Static holdover time (day): 52

Dimensions

• Neck opening (mm): 50
• External diameter (mm): 300
• Overal height (mm): 488
• Canisters diameter (mm): 38
• Canister height (mm): 120
• Weight empty (kg): 5.3
• Weight full (kg): 10.2

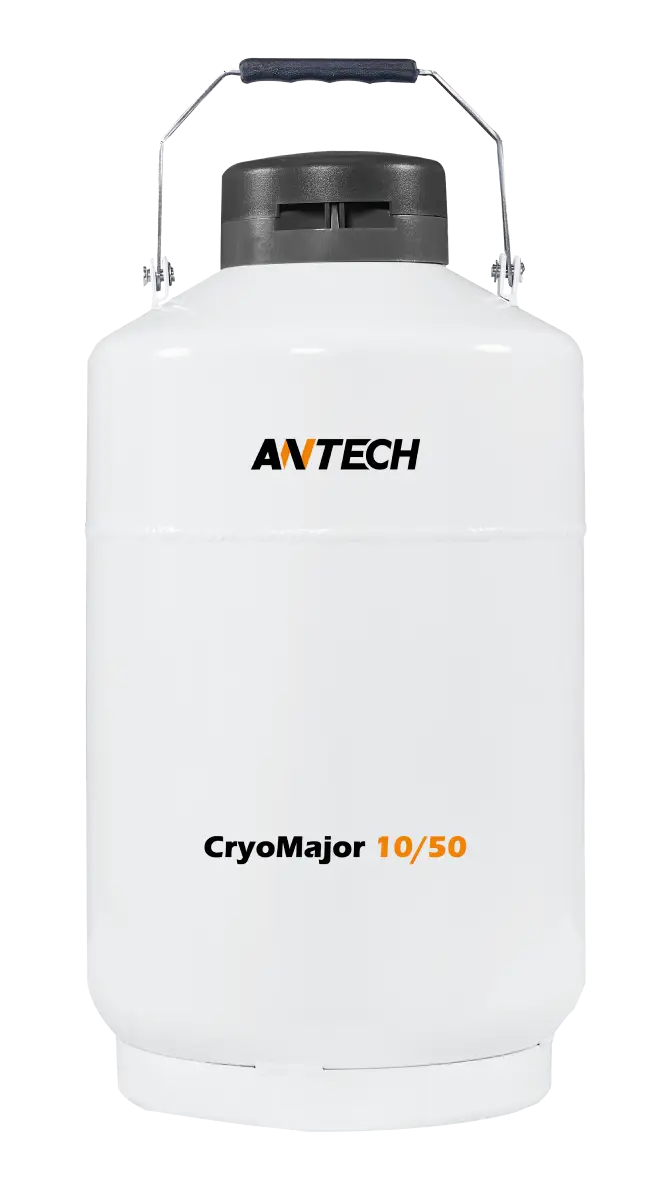

Maximum storage capacity

• Number of canister: 6
• Canister type 1-layer
• Number of straws, 1/2 cc: 792
• Number of straws, 1/4 cc: 1716

Performance

• LN2 capacity (L): 10
• Static evaporation rate (L/day): 0.12
• Static holdover time (day): 86

Dimensions

• Neck opening (mm): 50
• External diameter (mm): 300
• Overal height (mm): 566
• Canisters diameter (mm): 38
• Canister height (mm): 120
• Weight empty (kg): 6
• Weight full (kg): 14.1

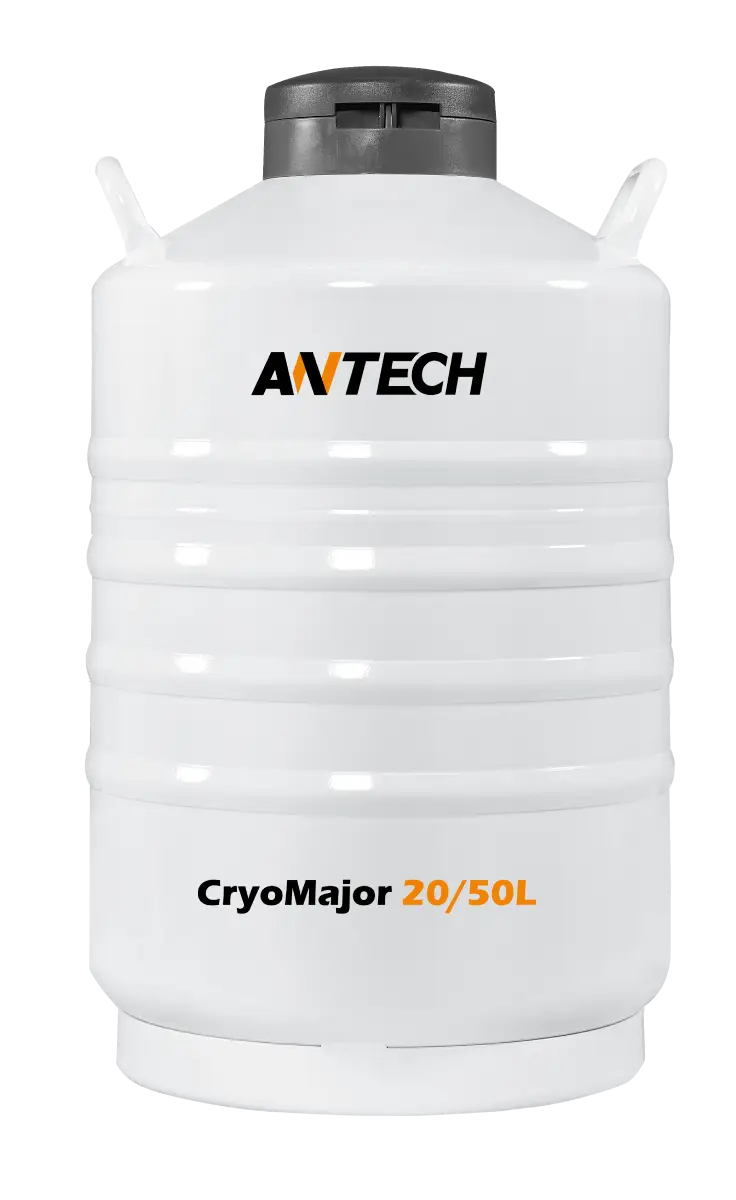

Maximum storage capacity

• Number of canister: 6
• Canister type: 2-layer
• Number of straws, 1/2 cc: 1200
• Number of straws, 1/4 cc: 2580

Performance

• LN2 capacity (L): 20
• Static evaporation rate (L/day): 0.12
• Static holdover time (day): 167

Dimensions

• Neck opening (mm): 50
• External diameter (mm): 396
• Overal height (mm): 688
• Canisters diameter (mm): 38
• Canister height (mm): 276
• Weight empty (kg): 12.2
• Weight full (kg): 28.5

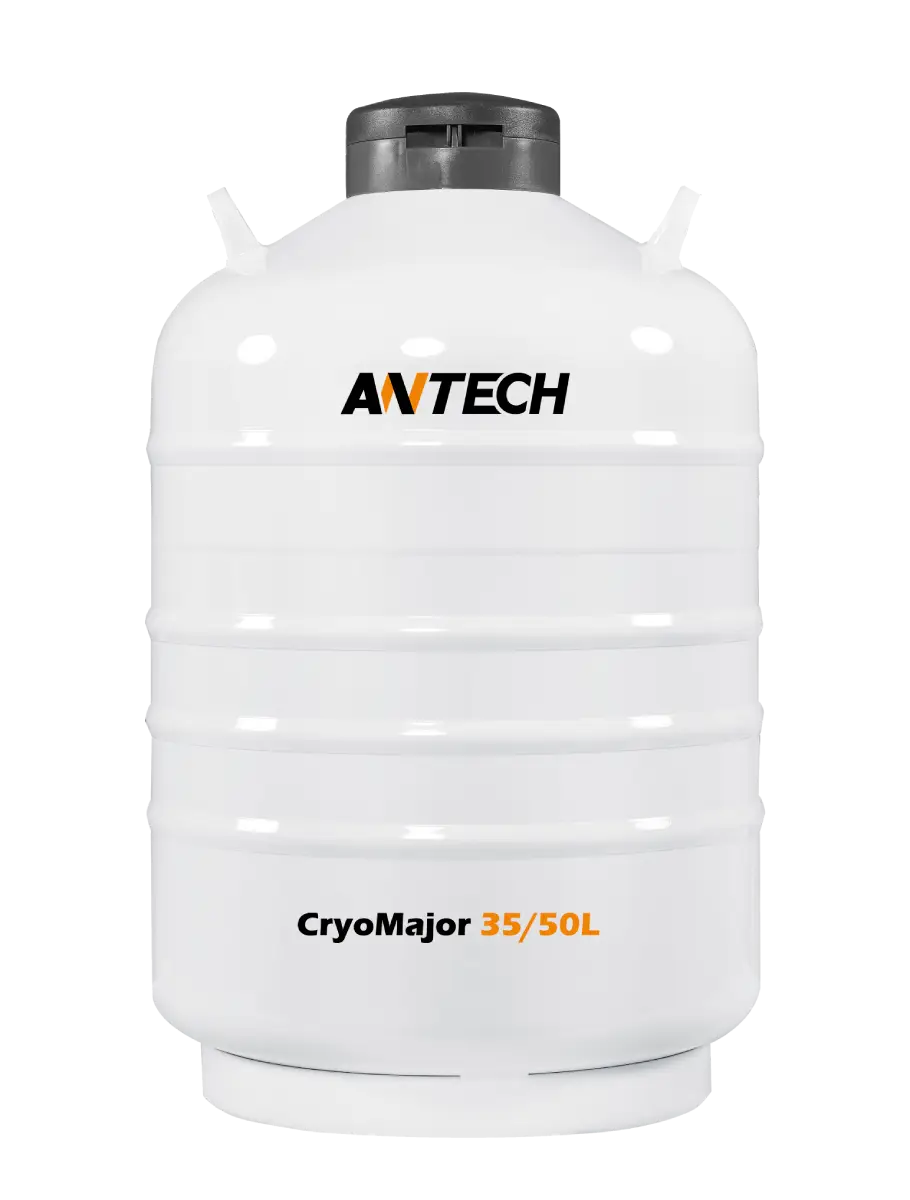

Maximum storage capacity

• Number of canister: 6
• Canister type 2-layer
• Number of straws, 1/2 cc: 1200
• Number of straws, 1/4 cc: 2580

Performance

• LN2 capacity (L): 35.5
• Static evaporation rate (L/day): 0.12
• Static holdover time (day): 286

Dimensions

• Neck opening (mm): 50
• External diameter (mm): 451
• Overal height (mm): 735
• Canisters diameter (mm): 38
• Canister height (mm): 276
• Weight empty (kg): 16.3
• Weight full (kg): 45.2

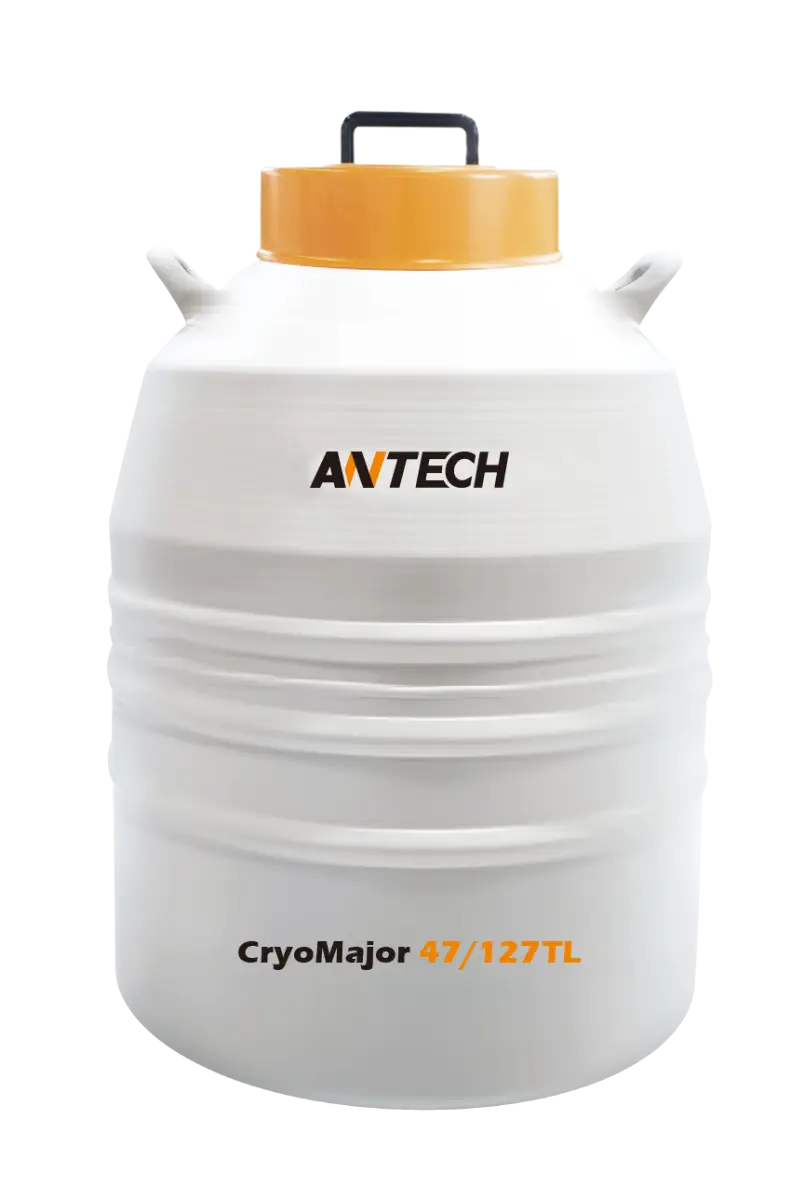

Maximum storage capacity

• Number of canister: 6
• Canister type 2-layer
• Number of straws, 1/2 cc: 9360
• Number of straws, 1/4 cc: 21000

Performance

• LN2 capacity (L): 47
• Static evaporation rate (L/day): 0.36
• Static holdover time (day): 131

Dimensions

• Neck opening (mm): 127
• External diameter (mm): 508
• Overal height (mm): 730
• Canisters diameter (mm): 72
• Canister height (mm): 276
• Weight empty (kg): 19.2
• Weight full (kg): 57.5

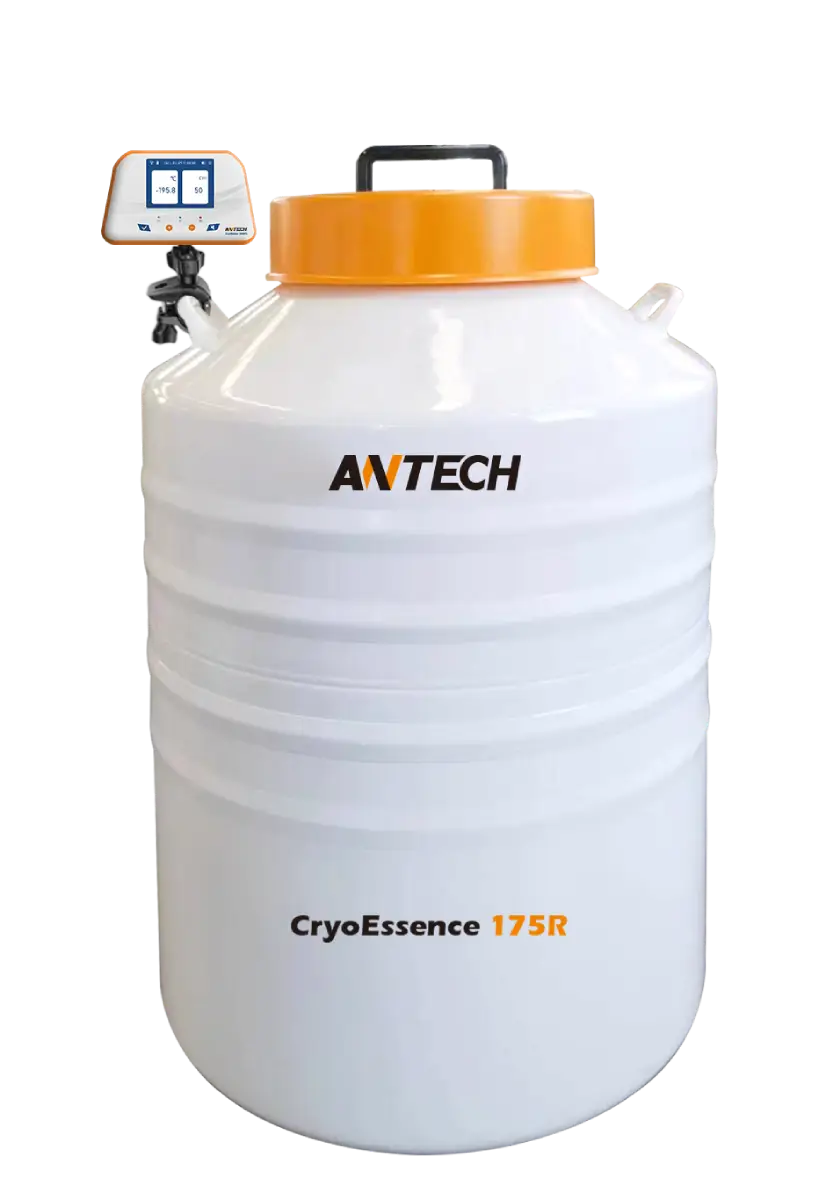

Maximum storage capacity
2ml vial

• 2ml vial (100-place box): 6000
• Number of racks: 6
• 2" Boxes per rack: 10

5ml vial

• 5ml vial (81-place box): 2430
• Number of racks: 6
• 3.75" Boxes per rack: 5

Performance

• LN2 capacity (L): 175
• Static evaporation rate (L/day): 1.50
• Static holdover time (day): 116

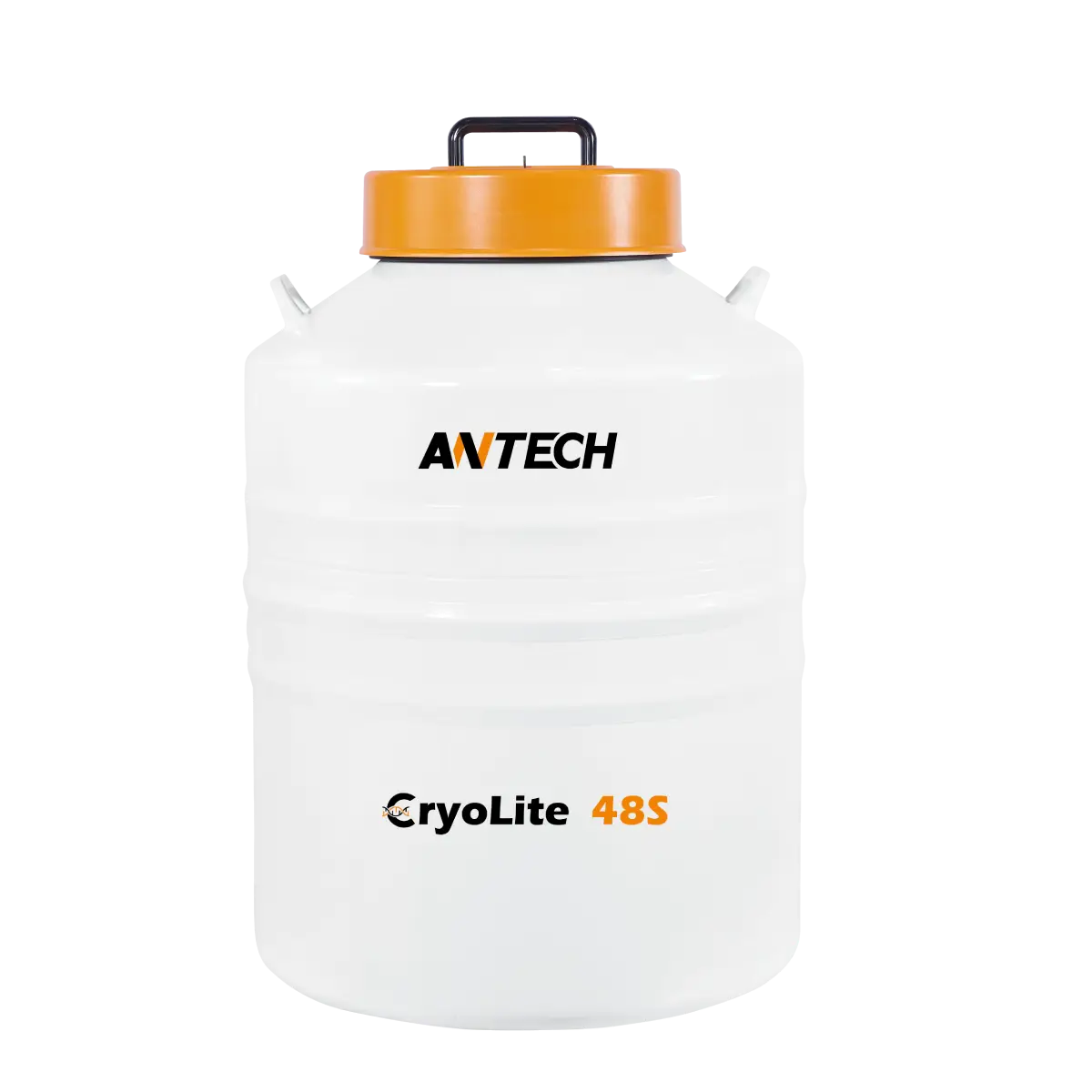

Maximum storage capacity
2ml vial

• 2ml vial (100-place box): 4800
• Number of racks: 6
• 2" Boxes per rack: 8

5ml vial

• 5ml vial (81-place box): 1944
• Number of racks: 6
• 3.75" Boxes per rack: 4

Performance

• LN2 capacity (L): 145
• Static evaporation rate (L/day): 1.50
• Static holdover time (day): 96

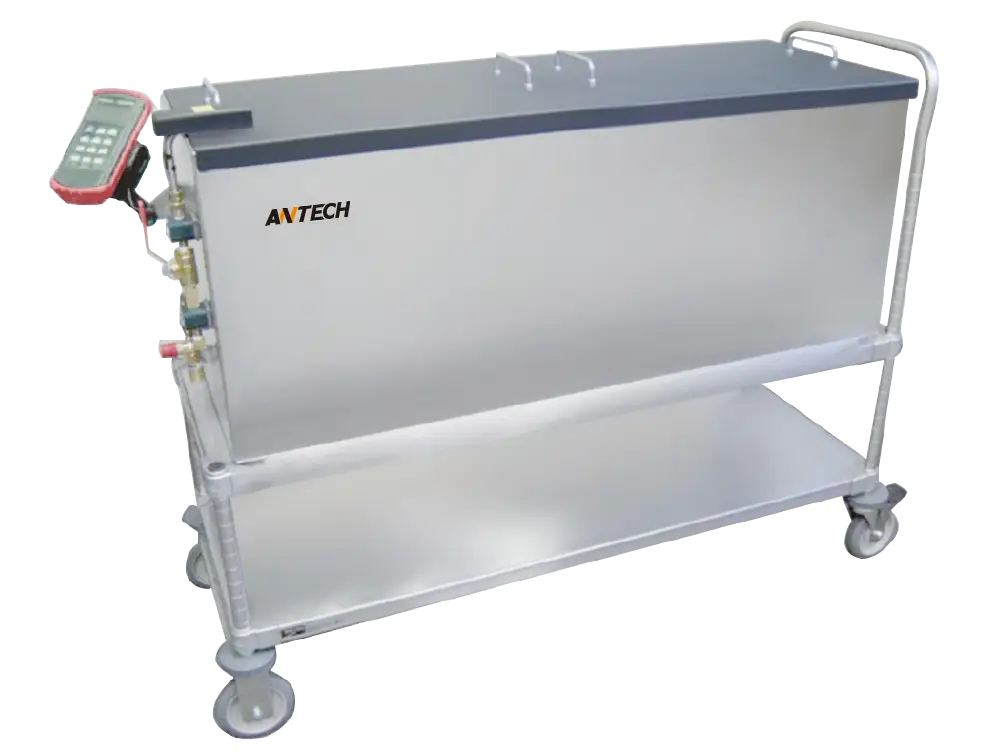

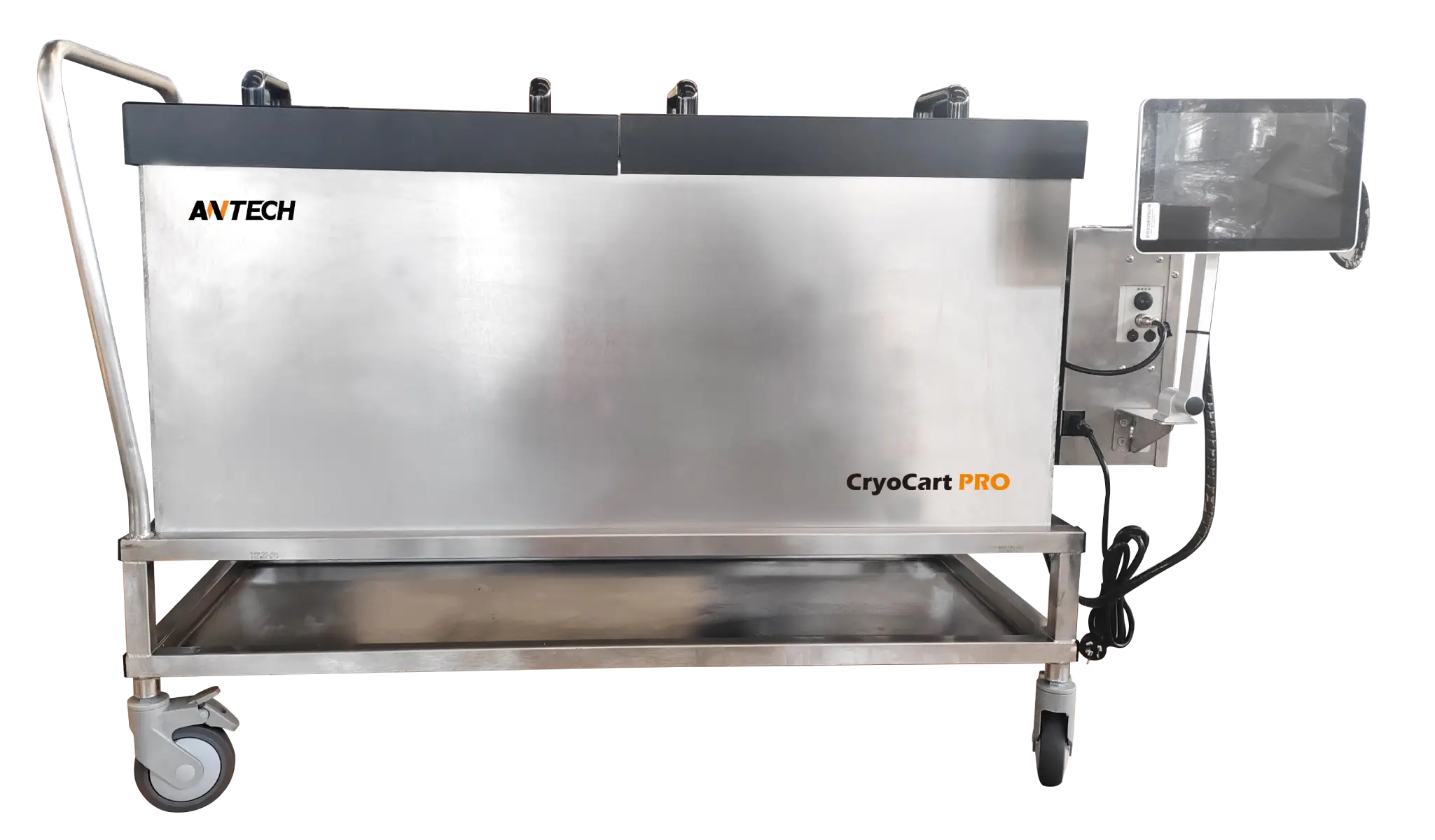

Performance & dimensions

• Liquid nitrogen capacity below platform (Liter): 34
• Holdover time (≤-150) with cover closed (hour):24
• External dimensions, L x W x H (mm): 1567 x 550 x 1012
• Internal dimensions, L x W x H (mm): 1000 x 295 x 560
• Platform height (mm): 100
• Weight empty (kg): 195
• Weight full (kg): 223
• Cart body material: SUS304
• Controller: Touch Screen
• Liquid nitrogen inflow port: CGA 295

Performance & dimensions

• Liquid nitrogen capacity below platform (Liter): 34
• Holdover time (≤-150) with cover closed (hour):24
• External dimensions, L x W x H (mm): 1434 x 550 x 1012
• Internal dimensions, L x W x H (mm): 1000 x 295 x 560
• Platform height (mm): 100
• Weight empty (kg): 190
• Weight full (kg): 218
• Cart body material: SUS304
• Data logger: Yes
• Liquid nitrogen inflow port: CGA 295

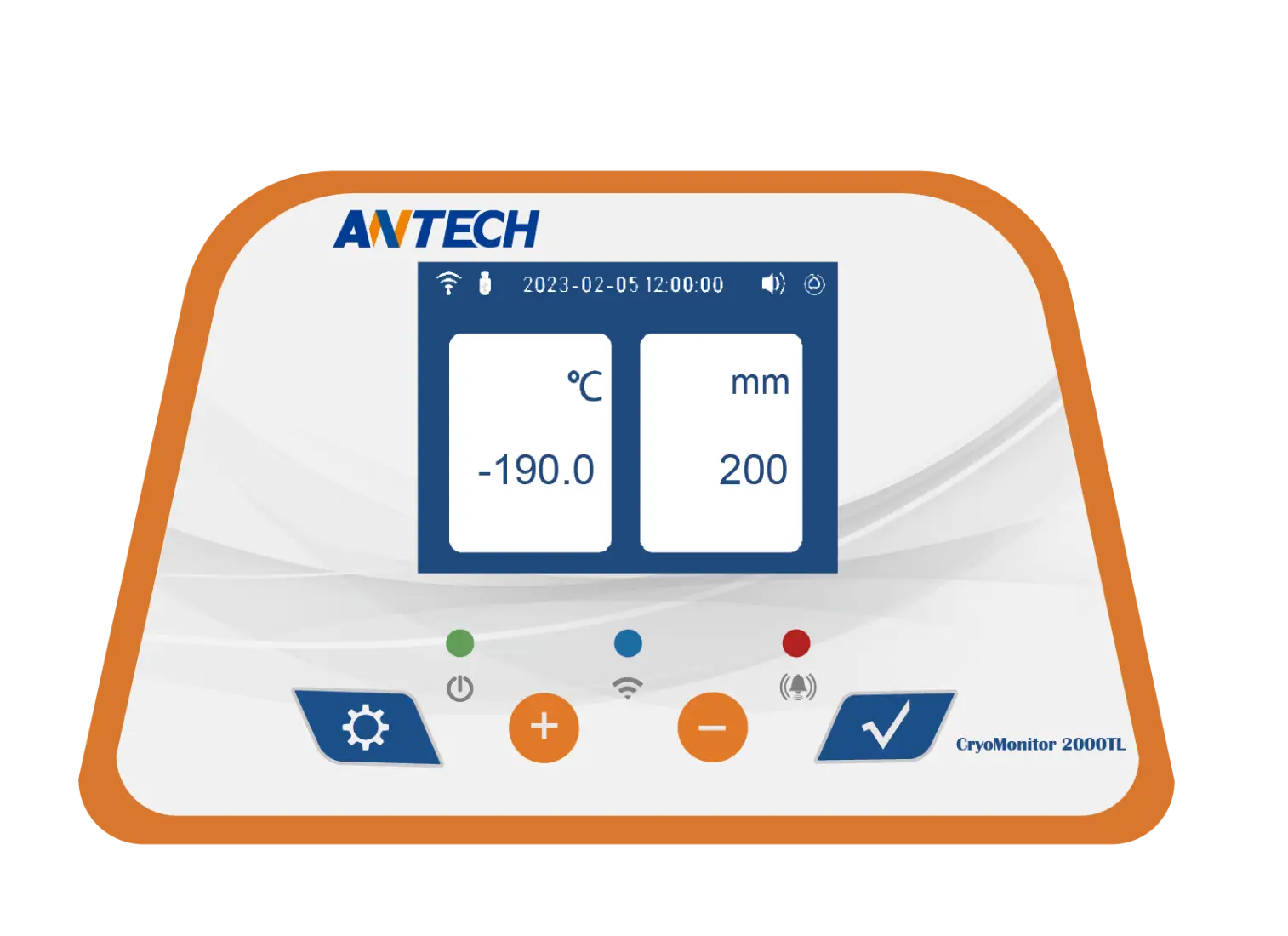

• Temperature monitoring: -200~+70°C
• LN2 level monitoring: Yes
• Temperature sensor: PT-100
• LN2 level sensor: Capacitance
• On-site alarm: Sound & light
• Dimension (Width x Height x Thickness): 138 x 91 x 42mm
• Net weight: 330g
• Power supply: 100~240V, 50/60Hz, AC
• Backup battery: Built-in lithium battery, replaceable

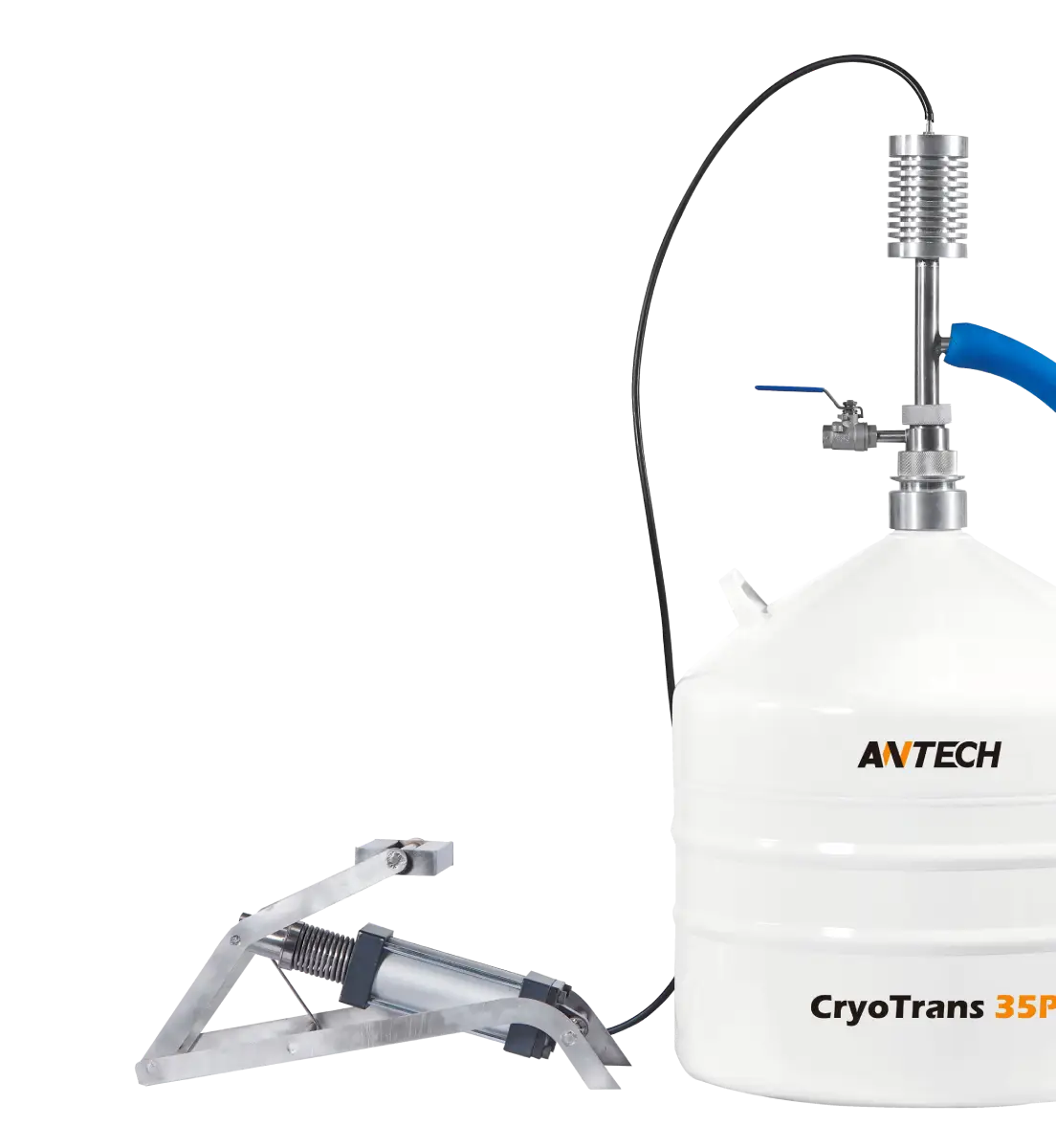

• Connection port: KF NW50
• Type: Foot press
• Material: SUS304 & aluminum
• Dewar applicable: CryoTrans 35 (standard), CryoTrans 50 (upon request)

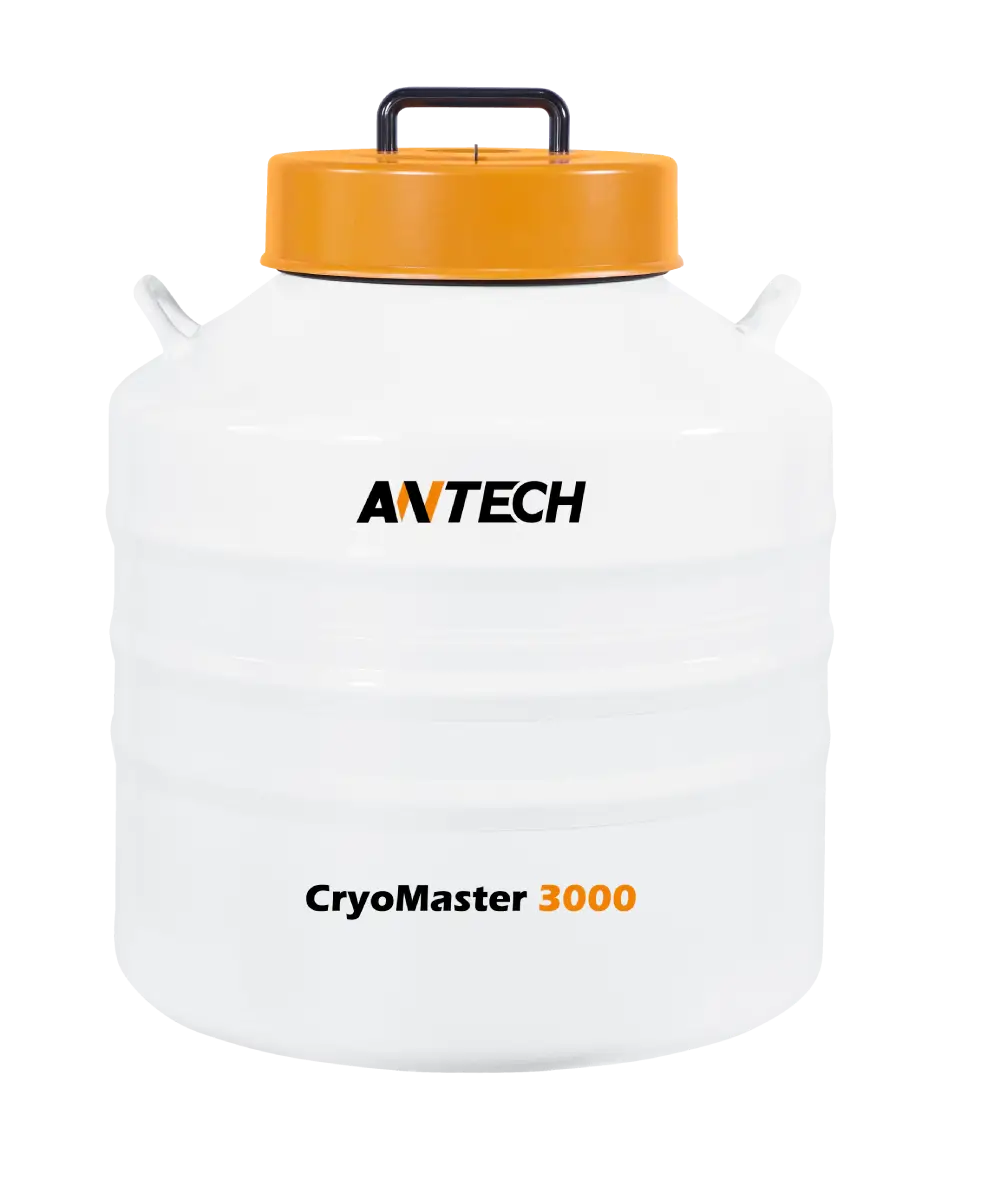

Maximum Storage Capacity
1.2 & 2ml vial

• 1.2 &2ml vials (25/100-place box): 3000
• Number of racks: 6
• 2" Boxes per rack: 5

5ml vial

• 5ml vials (81-place box): 972
• Number of racks: 6
  3.75" Boxes per rack: 2
• Numbers of blood bag: 30
• Number of racks: 6
• Layers per rack: 1
• Blood bags per layer: 5

Performance

• LN2 capacity (L): 95
• Static evaporation rate (L/day): 0.81
• Static holdover time (day): 117

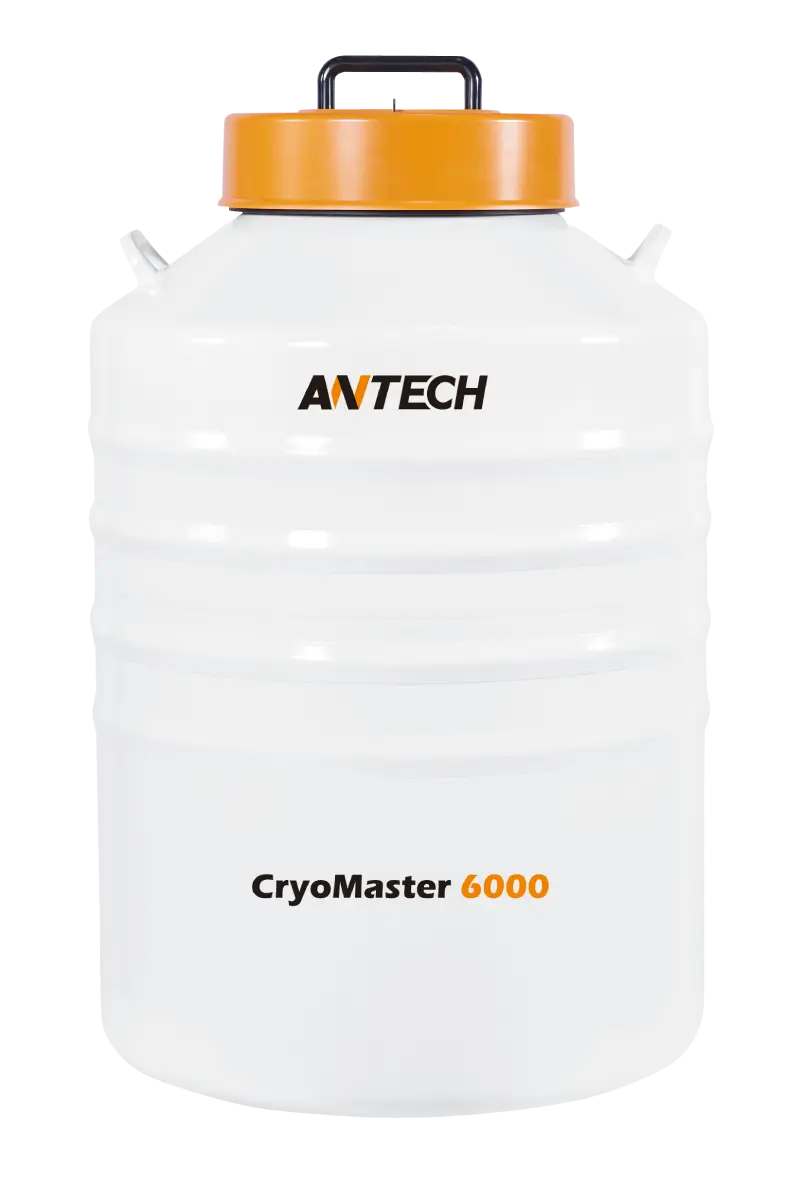

Maximum Storage Capacity
1.2 & 2ml vial

• 1.2 &2ml vials (25/100-place box): 6000
• Number of racks: 6
• 2" Boxes per rack: 10

5ml vial

• 5ml vials (81-place box): 2430
• Number of racks: 6
• 3.75" Boxes per rack: 5
• Numbers of blood bag: -
• Number of racks: -
• Layers per rack: -
• Blood bags per layer: -

Performance

• LN2 capacity (L): 175
• Static evaporation rate (L/day): 0.87
• Static holdover time (day): 201

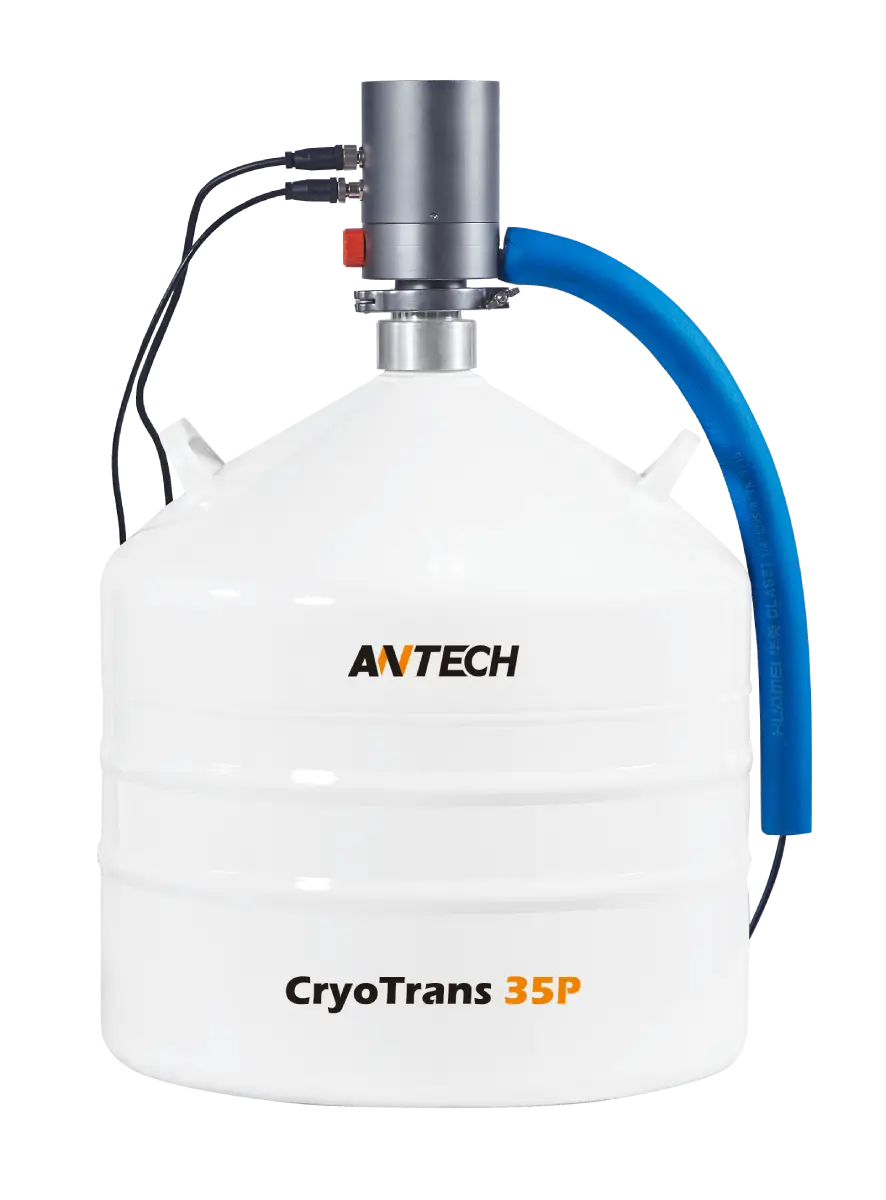

• Static evaporation rate: < 0,5 liters per day
• Flow rate: Pre-set on 40 mBar (adjustable)
• Maximum working pressure: < 300 mBar
• Reaction time: +/- 1 minutes for cooling down the fill line (with 1.6 meters fill line)
• Power connection: 115V / 230V AC with supplied power supply or 12-24 Volt AC/DC
• Power consumption: average 10 Watts, during pumping 50 watts
• Standard fill line: 6.25 mm OD, 4 mm ID PTFE tube, with 32mm foam insulation

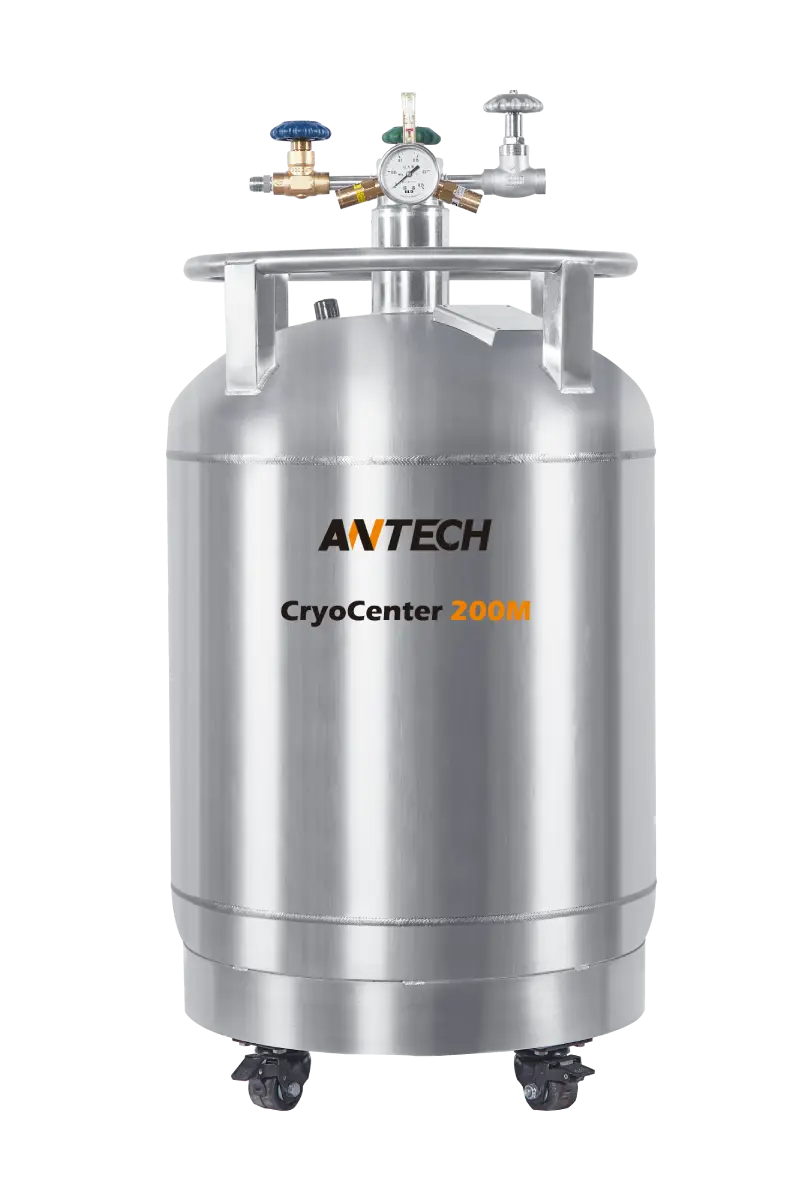

• Liquid nitrogen capacity (L): 200
• Infusion volumes (L/min): ≥10
• Static evaporation (L/d): 2.5
• Overall height (mm): 1280
• External diameter (mm): 656
• Weight empty (kg): 98
• Weight liquid full (kg): 260
• Standard working pressure (psig/bar/MPa): 13/0.9/0.09

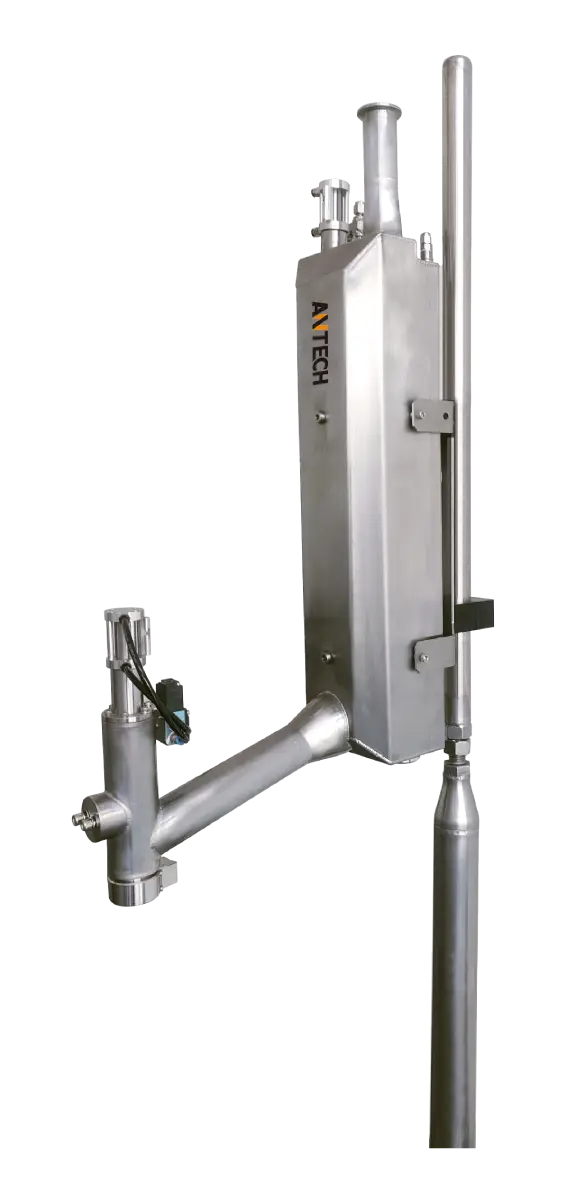

• Type: Low speed
• Maximum Discrete Dosing Speed (CPM):200
• Continuous Stream Dosing Speed (CPM): N/A
• Dose Duration: 15 ~ 1000 ms
• Nozzle Size: 1.5mm, 2.0mm, 2.5mm, 3.0mm
• Accuracy by Dose Weight: ±5%
• LN2 per Dose: 0.01-14g
• Touch Screen Display: Siemens
• PLC Platform: Siemens

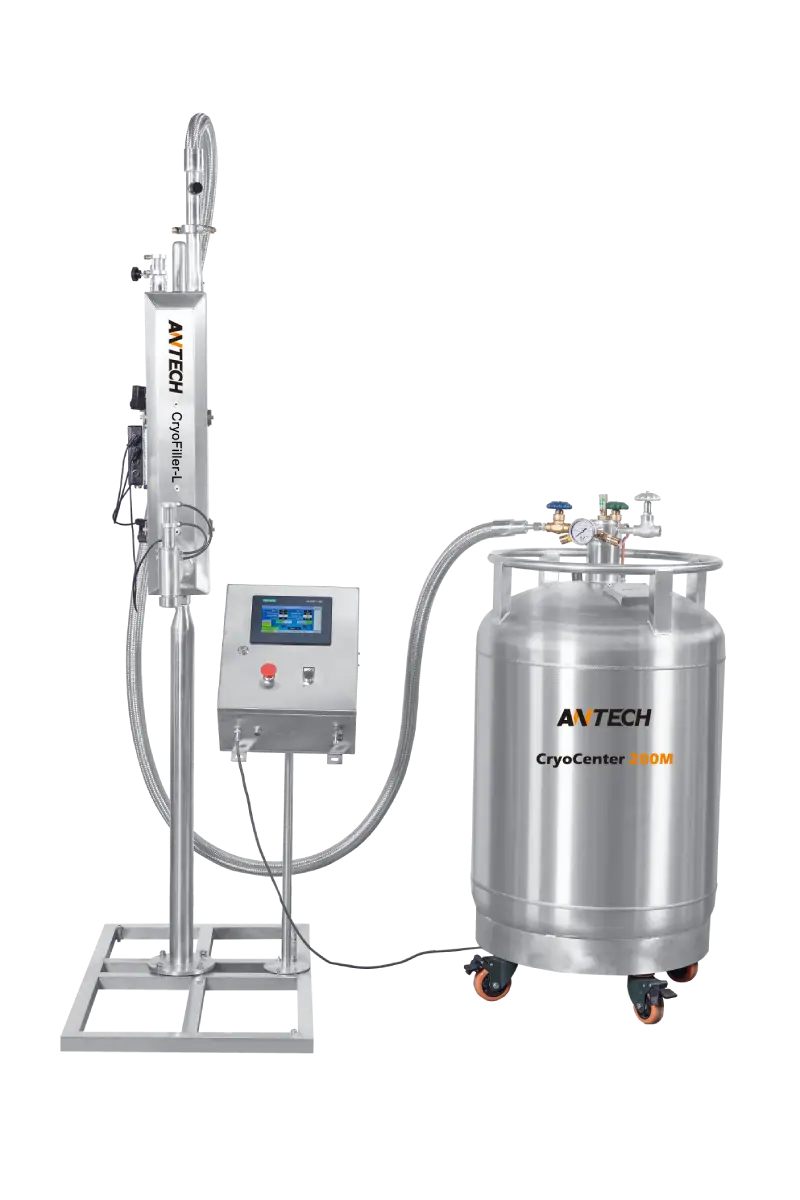

• Type: High speed
• Maximum Discrete Dosing Speed (CPM):600
• Continuous Stream Dosing Speed (CPM): 600~2000
• Dose Duration: 15 ~ 1000 ms
• Nozzle Size: 1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.5mm
• Accuracy by Dose Weight: ±5%
• LN2 per Dose: 0.01-14g
• Touch Screen Display: Siemens
• PLC Platform: Siemens

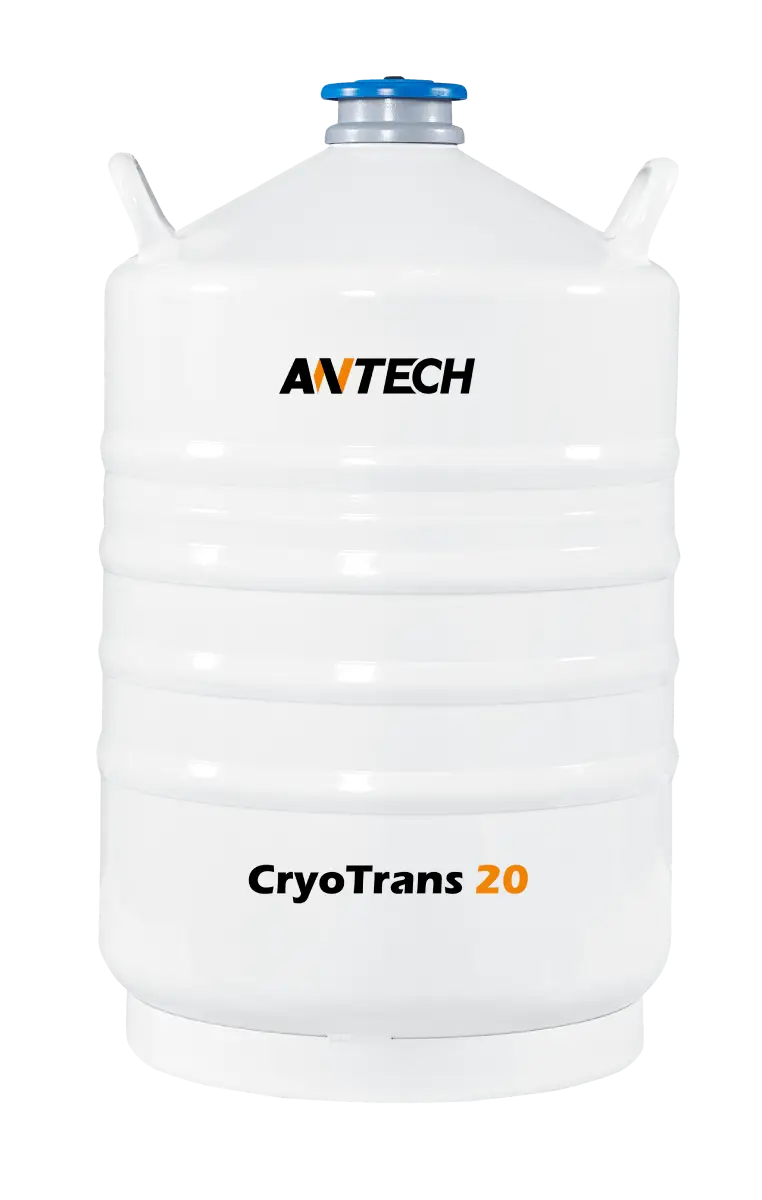

Performance

• LN2 capacity(L): 20
• Neck diameter (mm): 50
• Static evaporation rate (L/day): 0.12

Dimensions

• Overall height (mm): 668
• Outer diameter (mm): 396
• Inner diameter （mm): 296
• Weight empty (kg): 12
• Weight full (kg): 28

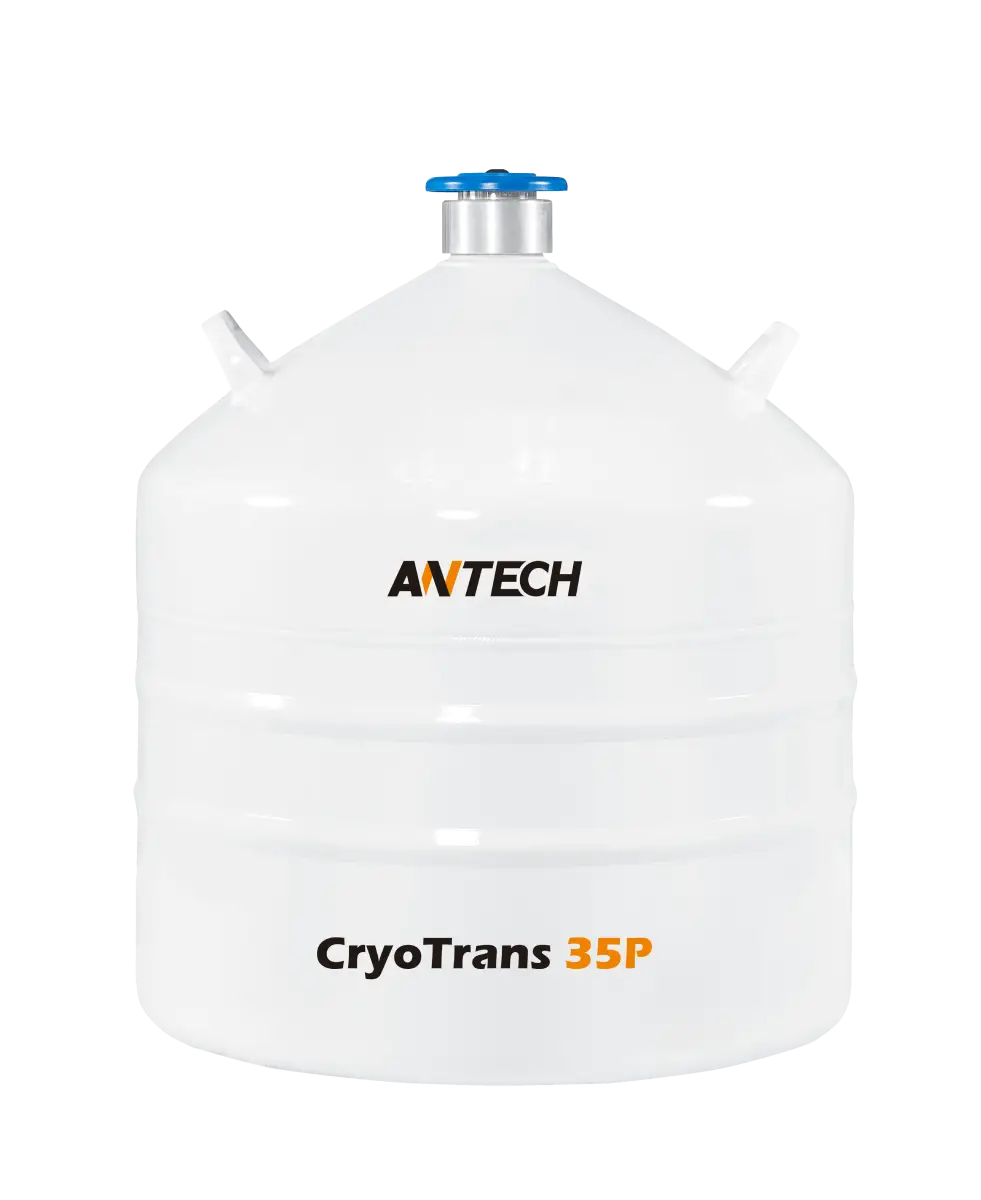

Performance

• LN2 capacity(L): 35
• Neck diameter (mm): 50
• Static evaporation rate (L/day): 0.15

Dimensions

• Overall height (mm): 580
• Outer diameter (mm): 508
• Inner diameter （mm): 420
• Weight empty (kg): 18
• Weight full (kg): 46
