LyoPro Series
Antech Scientific offers advanced LyoPro series freeze-drying system with unique LyoSmart operationg system, realizing full contorl of vacuum degree, making the freeze-drying process simpler, faster and better. LyoPro series freeze dyers are compact in design, high-efficiency in performance, smart in operation, and in daily use.
LyoPro 4S
Basic
- Type: Desktop
Ice condenser
- Temperature: -60°C
Max. ice capacity: 4 kg
Chamber volume: 6.5 L - Performance: 4 kg/24h
Control
- Display: 7" touch screen
- Operating system: LyoSmart
- Vacuum gauge type: Pirani
- Ultimate vacuum（mbar): 0.020
- Vacuum control range（mbar): 0.020~500
- Vacuum venting: Automatic
Cooling system
- Compressor: SECOP compressor x 1
Power
- Voltage（V/Hz): 220/50;220/60;120/60
- Rated power: 800 W

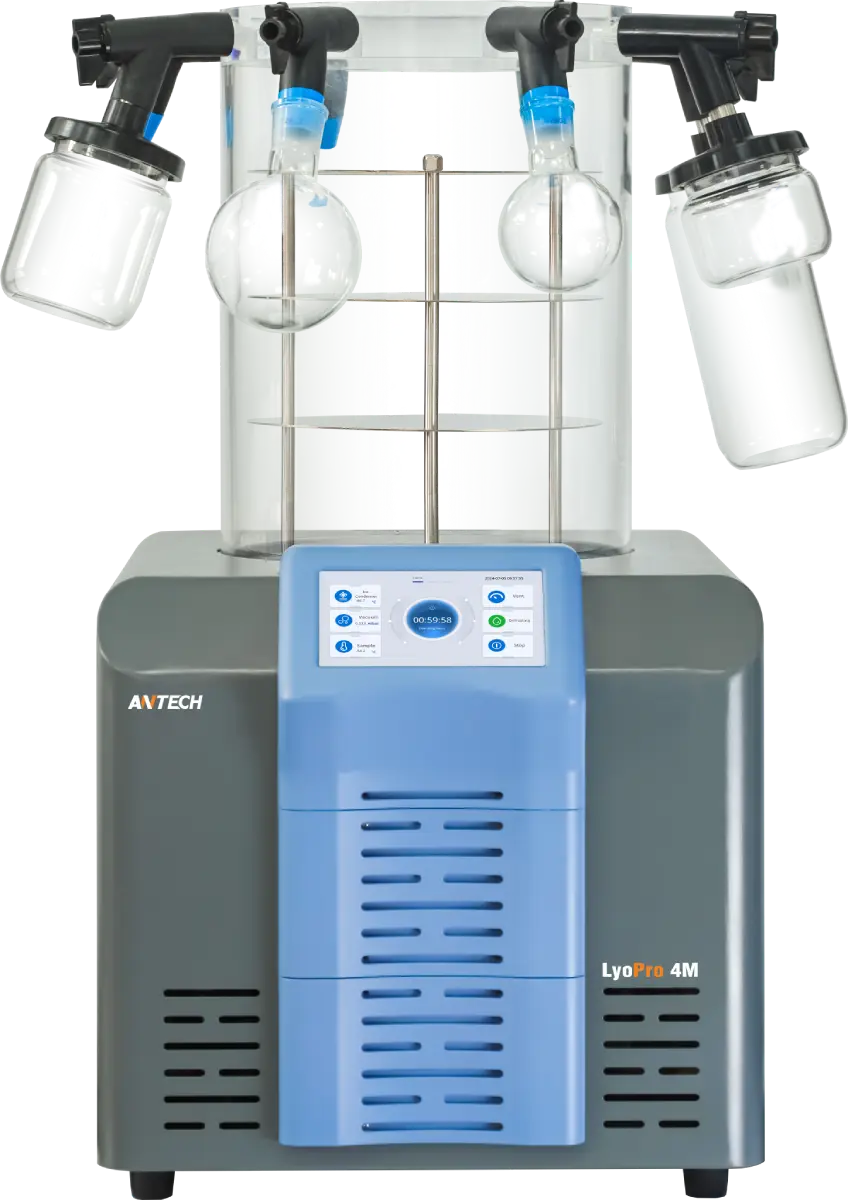

LyoPro 4M
Basic
- Type: Desktop
Ice condenser
- Temperature: -90°C
- Max. ice capacity: 4kg
- Chamber volume: 6.5L
- Performance: 4kg/24h
Control
- Display: 7" touch screen
- Operating system: LyoSmart
- Vacuum gauge type: Pirani
- Ultimate vacuum（mbar): 0.015
- Vacuum control range（mbar): 0.015~500
- Vacuum venting: Automatic
Cooling system:
- Compressor: SECOP compressor x2
Power
- Voltage（V/Hz): 220/50
- Rated power: 1300 W
LyoPro 8S
Basic
- Type: Desktop
Ice condenser
- Temperature: -60°C
- Max. ice capacity: 8kg
- Chamber volume: 15L
- Performance: 6kg/24h
Control
- Display: 7" touch screen
- Operating system: LyoSmart
- Vacuum gauge type: Pirani
- Ultimate vacuum（mbar): 0.020
- Vacuum control range（mbar): 0.020~500
- Vacuum venting: Automatic
Cooling system
- Compressor: SECOP compressor x 1
Power
- Voltage（V/Hz): 220/50;220/60;120/60
- Rated power: 900 W
LyoPro 12S
Basic
- Type: Floor-standing
Ice condenser
- Temperature: -60°C
- Max. ice capacity: 12kg
- Chamber volume: 21L
- Performance: 8kg/24h
Control
- Display: 7" touch screen
- Operating system: LyoSmart
- Vacuum gauge type: Pirani
- Ultimate vacuum（mbar): 0.020
- Vacuum control range（mbar): 0.020~500
- Vacuum venting: Automatic
Cooling system
- Compressor: SECOP compressor x 1
Power
- Voltage（V/Hz): 220/50;220/60;120/60
- Rated power: 1300 W

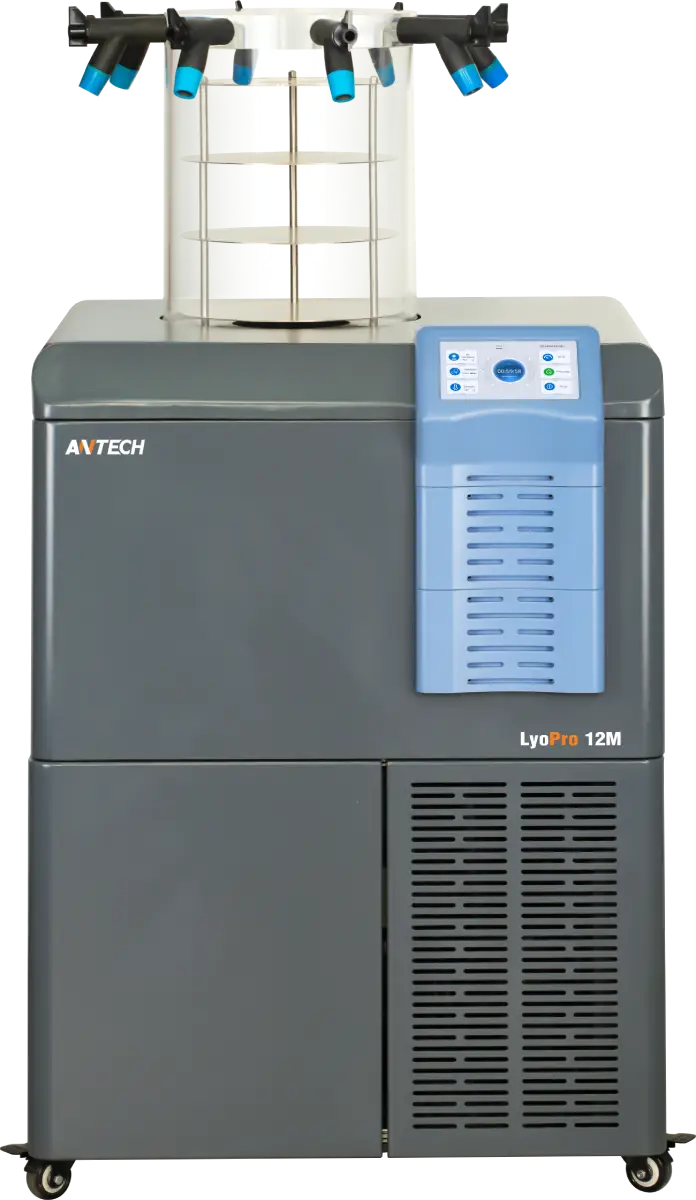

LyoPro 12M
Basic
- Type: Floor-standing
Ice condenser
- Temperature: -90°C
- Max. ice capacity: 12kg
- Chamber volume: 21L
- Performance: 8kg/24h
Control
- Display: 7" touch screen
- Operating system: LyoSmart
- Vacuum gauge type: Pirani
- Ultimate vacuum（mbar): 0.020
- Vacuum control range（mbar): 0.020~500
- Vacuum venting: Automatic
Cooling system
- Compressor: SECOP compressor x 1
Power
- Voltage（V/Hz): 220/50;220/60;120/60
- Rated power: 1800 W
Lyopro 8L
With Stopper
